prf.h File Reference

#include <stdio.h>
#include <stdlib.h>
#include <math.h>
#include "collection.h"

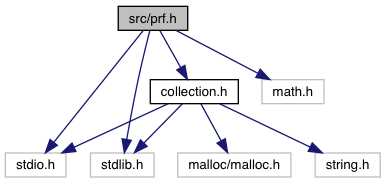

Include dependency graph for prf.h:

This graph shows which files directly or indirectly include this file:

Go to the source code of this file.

Data Structures
struct	linearRegister
	Data structure used for representing a linearly accessible register. More...
struct	Address2d
	Data structure used for representing a 2D address. More...
struct	BlockAccess
struct	PolymorphicRegister
	Data structure used for representing a Polymorphic Register. More...

Macros
#define	ERR   -1
	The default error value. More...

Enumerations
enum	scheme {   RECTANGLE_ONLY, RECT_ROW, RECT_COL, ROW_COL,   RECT_TRECT, UNDEFINED }
	Enum containing all the available mapping scheme. More...
enum	acc_type {   RECTANGLE, TRANSP_RECTANGLE, ROW, COLUMN,   MAIN_DIAG, SECONDARY_DIAG, DEFAULT }
	Enum containing all the available access types. More...

Functions
int	m_v (int index_i, int index_j, scheme s, int p, int q)
	Given two input indices and a PRF mapping scheme, outputs the row of the corrispondent linear register where the data is stored. More...
int	m_h (int index_i, int index_j, scheme s, int p, int q)
	Given two input indices and a PRF mapping scheme, outputs the column of the corrispondent linear register where the data is stored. More...
int	A_standard (int index_i, int index_j, int p, int q)
	Given two input indices and a PRF mapping scheme, outputs the linear register index where the data is stored. More...
int	A_custom (PolymorphicRegister *pR, int index_i, int index_j, int alpha, int beta, acc_type type)
PolymorphicRegister *	createPolymorphicRegister (int p, int q, int linRegSize)
	Allocates memory required for a Polymorphic Register and returns a pointer to it. More...
void	writeToPR (PolymorphicRegister *pR, int data, int index_i, int index_j)
	Stores an integer at the given "logical" index in the Polymorphic Register given as argument. More...
int	readFromPR (PolymorphicRegister *pR, int index_i, int index_j)
	Reads an integer at the given "logical" index in the Polymorphic Register given as argument. More...
int **	parallelReadFromPR (PolymorphicRegister *pR, int z)
	Reads an array of integer at the given depth in the Polymorphic Register given as argument. More...
int **	readBlock (PolymorphicRegister *pR, int index_i, int index_j, acc_type type)
	Performs a block read on the PolymorphicRegister. More...
int **	readBlockCustom (PolymorphicRegister *pR, int index_i, int index_j, acc_type type)
int **	computeConflicts (PolymorphicRegister *pR, int index_i, int index_j, acc_type type)
	Computes the conflict matrix relative to a block read on the PolymorphicRegister. More...
Address2d *	AGU (int index_i, int index_j, int p, int q, acc_type type)
	Generates all the 2D logical addresses of the elements read in a block read. More...
int	compareAddress (void *a, void *b)
t_list *	parallelAccessCoverage (PolymorphicRegister *pR, t_list *parallel_accesses)

Variables
int	N
	Size of the horizontal dimension of the original matrix. More...
int	M
	Size of the vertical dimension of the original matrix. More...

Macro Definition Documentation

#define ERR   -1

The default error value.

Enumeration Type Documentation

enum acc_type

Enum containing all the available access types.

Enumerator
RECTANGLE	Access p x q rectangle.
TRANSP_RECTANGLE	Access qxp rectangle.
ROW	Access 1 x p*q rows.
COLUMN	Access p*q x 1 columns.
MAIN_DIAG	Access elements in the main diagonal.
SECONDARY_DIAG	Access elements in the secondary diagonal.

enum scheme

Enum containing all the available mapping scheme.

suitable for mapping input matrix logical addresses into physical Polymorphic Register addresses;

Enumerator
RECTANGLE_ONLY	This access scheme allows only conflict free rectangular block accesses.
RECT_ROW	This access scheme allows only conflict free rectangular, row, main diagonal and secondary diagonal block accesses.
RECT_COL	This access scheme allows only conflict free rectangular, column, main diagonal and secondary diagonal block accesses.
ROW_COL	This access scheme allows only conflict free rectangular, column, and row block accesses.
RECT_TRECT	This access scheme allows only conflict free rectangular, and transposed rectangular block accesses.

Function Documentation

int A_standard	(	int	index_i,
		int	index_j,
		int	p,
		int	q
	)

Given two input indices and a PRF mapping scheme, outputs the linear register index where the data is stored.

Parameters

index_i	index of the access.
index_j	index of the access.
p	size of the PRF on its first dimension.
q	size of the PRF on its second dimension.

Returns

Correspondent index in the linear register.

Address2d* AGU	(	int	index_i,
		int	index_j,
		int	p,
		int	q,
		acc_type	type
	)

Generates all the 2D logical addresses of the elements read in a block read.

Parameters

index_i	index of the top-left element in the block read.
index_j	index of the top-left element in the block read.
p	size of the PRF on its first dimension.
q	size of the PRF on its second dimension.
type	access type specifying the shape of the block access.

Returns

list of the 2D addresses of the block read.

int** computeConflicts	(	PolymorphicRegister *	pR,
		int	index_i,
		int	index_j,
		acc_type	type
	)

Computes the conflict matrix relative to a block read on the PolymorphicRegister.

Parameters

pR	Pointer to the Polymorphic Register.
index_i	Logical index on the horizontal dimension of the top-left element in the accessed block.
index_j	Logical index on the vertical dimension of the top-left element in the accessed block.
type	Access Type defining the shape of the block access.

Returns

2D array containing the conflict matrix.

PolymorphicRegister* createPolymorphicRegister	(	int	p,
		int	q,
		int	linRegSize
	)

Allocates memory required for a Polymorphic Register and returns a pointer to it.

Parameters

p	size of the PRF on its first dimension.
q	size of the PRF on its second dimension.
linRegSize	size of each linear register in the PRF.

Returns

Pointer to the Polymorphic Register

int m_h	(	int	index_i,
		int	index_j,
		scheme	s,
		int	p,
		int	q
	)

Given two input indices and a PRF mapping scheme, outputs the column of the corrispondent linear register where the data is stored.

Parameters

index_i	index of the access.
index_j	index of the access.
s	selected mapping scheme for the access.
p	size of the PRF on its first dimension.
q	size of the PRF on its second dimension.

Returns

Correspondent linear register column.

int m_v	(	int	index_i,
		int	index_j,
		scheme	s,
		int	p,
		int	q
	)

Given two input indices and a PRF mapping scheme, outputs the row of the corrispondent linear register where the data is stored.

Parameters

index_i	index of the access.
index_j	index of the access.
s	selected mapping scheme for the access.
p	size of the PRF on its first dimension.
q	size of the PRF on its second dimension.

Returns

Correspondent linear register row.

int** parallelReadFromPR	(	PolymorphicRegister *	pR,
		int	z
	)

Reads an array of integer at the given depth in the Polymorphic Register given as argument.

Parameters

pR	Pointer to the Polymorphic Register.
z	Depth of the 2D array in the Polymorphic Register.

Returns

2D array resulting from the parallel read.

int** readBlock	(	PolymorphicRegister *	pR,
		int	index_i,
		int	index_j,
		acc_type	type
	)

Performs a block read on the PolymorphicRegister.

Parameters

pR	Pointer to the Polymorphic Register.
index_i	Logical index on the horizontal dimension of the top-left element in the accessed block.
index_j	Logical index on the vertical dimension of the top-left element in the accessed block.
type	Access Type defining the shape of the block access.

Returns

2D array resulting from the block read.

int readFromPR	(	PolymorphicRegister *	pR,
		int	index_i,
		int	index_j
	)

Reads an integer at the given "logical" index in the Polymorphic Register given as argument.

Parameters

pR	Pointer to the Polymorphic Register.
index_i	Logical index on the first dimension.
index_j	Logical index on the second dimension.

Returns

integer at the given logical position.

void writeToPR	(	PolymorphicRegister *	pR,
		int	data,
		int	index_i,
		int	index_j
	)

Stores an integer at the given "logical" index in the Polymorphic Register given as argument.

Parameters

pR	Pointer to the Polymorphic Register.
index_i	Logical index on the first dimension.
index_j	Logical index on the second dimension.
data	integer to store

Returns

Pointer to the Polymorphic Register

Variable Documentation

int M

Size of the vertical dimension of the original matrix.

int N

Size of the horizontal dimension of the original matrix.
