utility.h File Reference

#include <stdio.h>
#include <stdlib.h>
#include <math.h>
#include <string.h>
#include "prf.h"

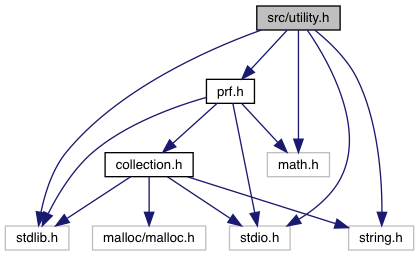

Include dependency graph for utility.h:

Go to the source code of this file.

Data Structures
struct	Options
	Data structure used to store the user's given arguments. More...

Functions
Options	parseArguments (int argc, char **argv)
	Parses the user arguments. More...
void	printMatrix (int **inputMatrix, int dim1, int dim2)
	Prints in the console a formatted 2D matrix. More...
void	printConflicts (int **inputMatrix, int dim1, int dim2)
	Prints in the console a conflict matrix, highlighting the conflicts. More...
void	printMatrixHighlight (int **inputMatrix, int dim1, int dim2, int **highlightMatrix, int dimH1, int dimH2)
	Prints in the console a matrix, highlighing certain elements. More...
void	printUsage (char *programName)
	Prints in the console the usage informations. More...
void	performBlockRead (int index_i, int index_j, acc_type type, int **data_elements1, PolymorphicRegister *pR, int mode)
	Prints the report information of a block read. More...
char *	accessStringFromAccessType (acc_type type)
int	compareAddress (void *a, void *b)

Function Documentation

Options parseArguments	(	int	argc,
		char **	argv
	)

Parses the user arguments.

Parameters

argc	number of user arguments.
argv	list of user's arguments.

Returns

Options struct containing the settings defined by the user.

See also

Options

void performBlockRead	(	int	index_i,
		int	index_j,
		acc_type	type,
		int **	data_elements1,
		PolymorphicRegister *	pR,
		int	mode
	)

Prints the report information of a block read.

Parameters

index_i	the horizontal index of the top-left element of the block read.
index_j	the vertical index of the top-left element of the block read.
type	access type defining the block access shape.
data_elements1	the 2D array containing original input matrix.
pR	pointer to the PolymorphicRegister used for the block read.
mode	select the access mode ( STANDARD or CUSTOM )

void printConflicts	(	int **	inputMatrix,
		int	dim1,
		int	dim2
	)

Prints in the console a conflict matrix, highlighting the conflicts.

Parameters

inputMatrix	the 2D array containing the confict's data.
dim1	the horizontal dimension of the given matrix.
dim2	the vertical dimension of the given matrix.

void printMatrix	(	int **	inputMatrix,
		int	dim1,
		int	dim2
	)

Prints in the console a formatted 2D matrix.

Parameters

inputMatrix	the 2D array containing the data.
dim1	the horizontal dimension of the given matrix.
dim2	the vertical dimension of the given matrix.

void printMatrixHighlight	(	int **	inputMatrix,
		int	dim1,
		int	dim2,
		int **	highlightMatrix,
		int	dimH1,
		int	dimH2
	)

Prints in the console a matrix, highlighing certain elements.

Parameters

inputMatrix	the 2D array containing all the matrix data.
dim1	the horizontal dimension of the given matrix.
dim2	the vertical dimension of the given matrix.
highlightMatrix	the 2D array containing the elements of the inputMatrix to highlight.
dimH1	the horizontal dimension of the given highlightMatrix.
dimH2	the vertical dimension of the given highlightMatrix.

void printUsage

(

char *

programName

)

Prints in the console the usage informations.

Parameters

programName

name of the executable
